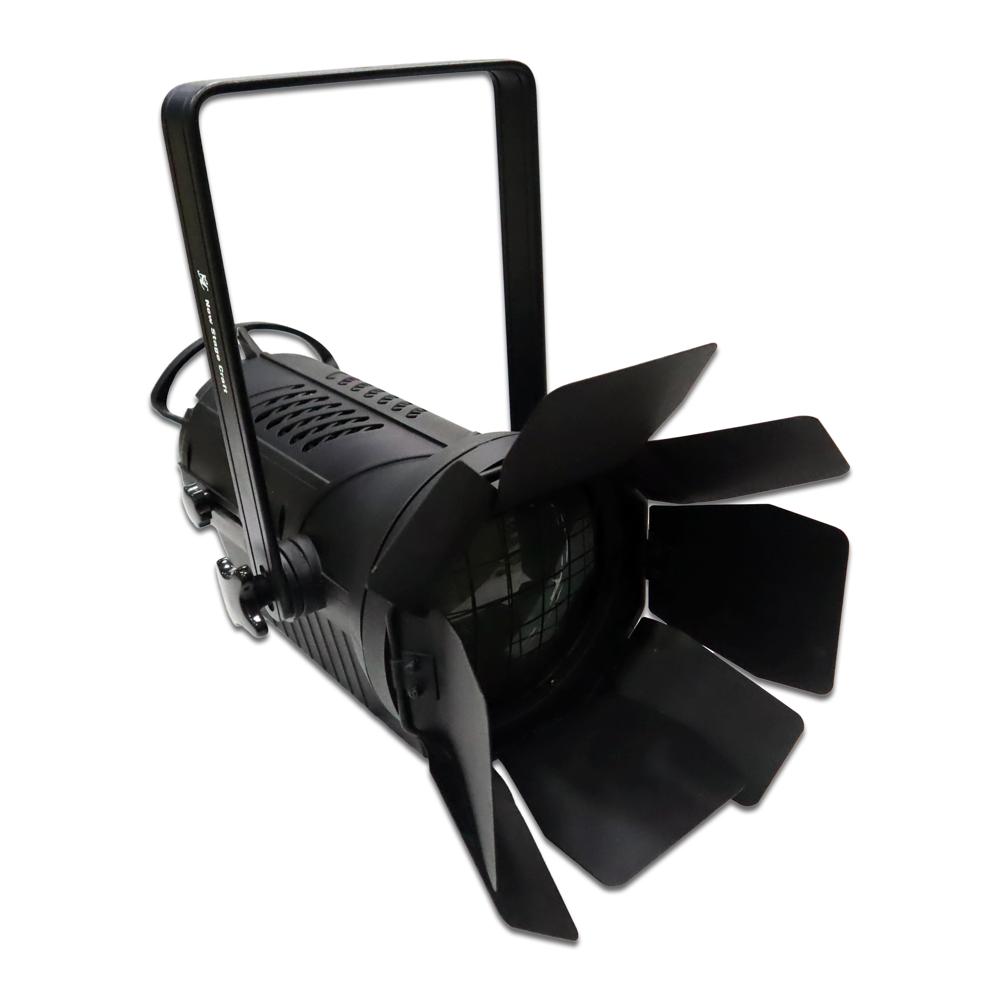

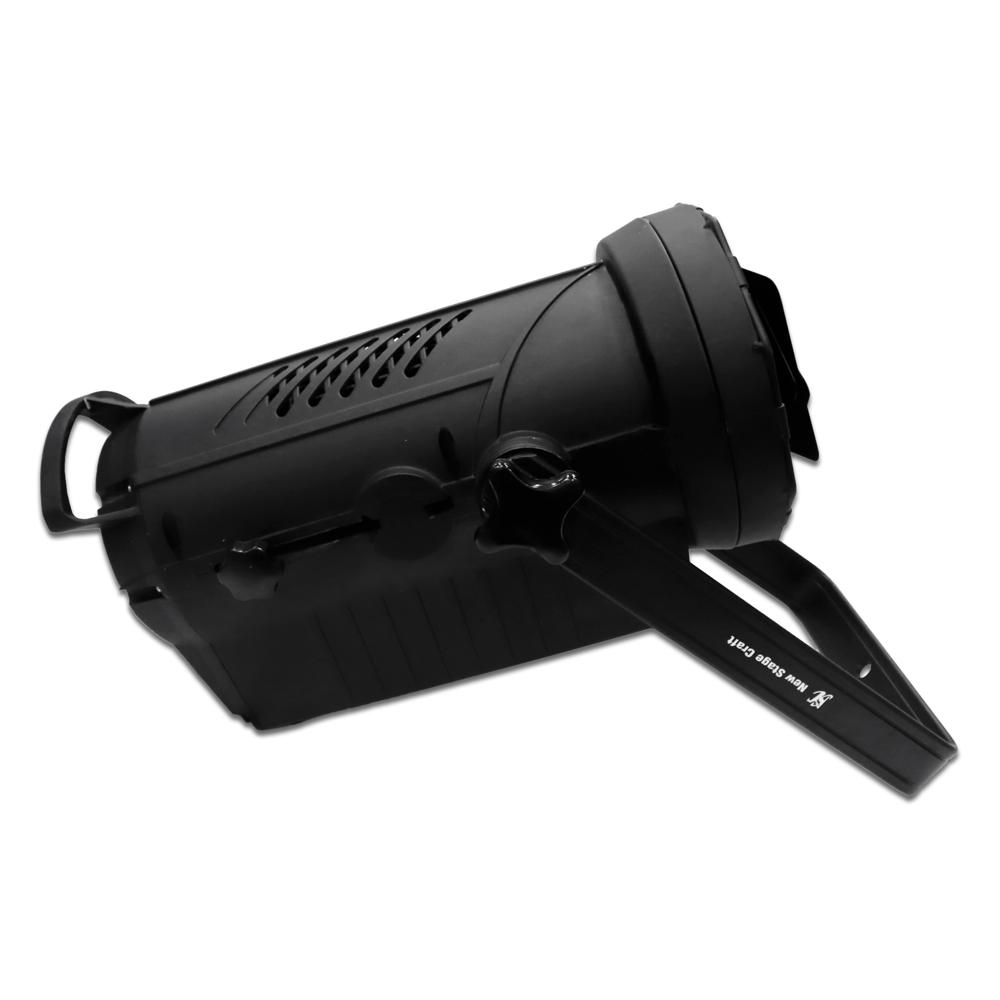

Led Fresnel Stage Light

Led Fresnel Stage Light Specification

Features
Dimmable, High CRI, Adjustable Beam Angle, Silent Fan Cooling

Weight
7.6 kg

Usage & Applications
Stage Lighting, Theatre, Studio, Events, Auditorium

Surface Finish
Matte Black Coated

Mounting Type
Yoke Mount

Product Type
LED Fresnel Stage Light

Material
Mild Steel

Rated Power
150W

Length
320 mm

Voltage
220 - 380 Volt (v)

Lighting
Warm White

Input Voltage
AC 100-240V 50/60Hz

Working Temperature
-20C to 40C

Rated Current
1.25A

Socket
Standard Power In/Out Socket

Color
Black

Height
280 mm

Dimmer
0-100% Linear Dimming

Power Consumption
Maximum 150W

Color Temperature
3200K/5600K (Optional)

Cooling System
Silent Fan

Housing Color
Black

Packing Size
410 360 250 mm

Frequency
50/60 Hz

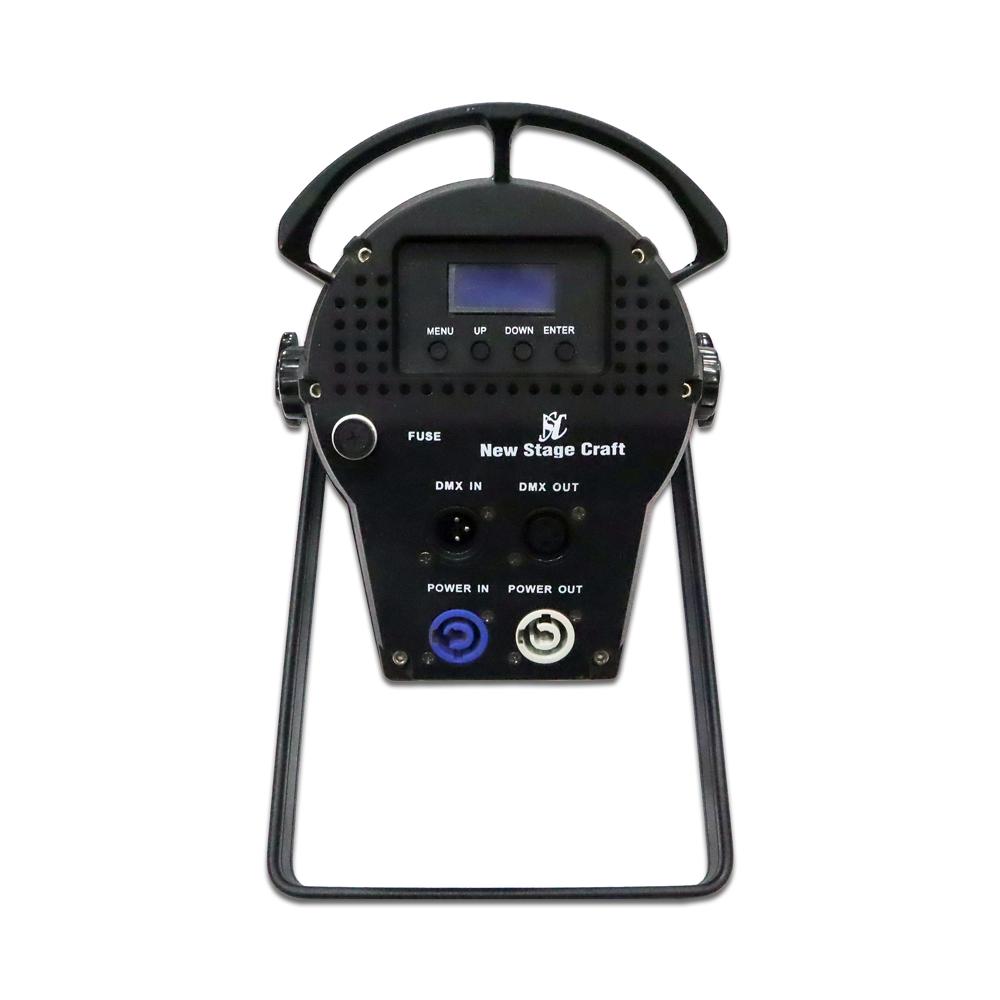

Control Mode
DMX 512, Manual

Display
LCD Control Panel

Accessory
Barndoor, Power Cable, Safety Rope

CRI (Color Rendering Index)
>90

Lamp Life
50,000 hours

IP Rating
IP20

Luminous Flux
14000 lm

Light Source
COB LED

Beam Angle
15-55 Adjustable

Led Fresnel Stage Light Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
4 Days

Main Domestic Market
All India

About Led Fresnel Stage Light

Product details

Control Channel	15 / 17 DMX Channels
Frequency	50 - 60 Hz
Phase	Single
Power Consumption	300 W
Voltage	220 - 380 V
Brand	New stage craft
Net Weight	21 Kg
Lighting Color	Warm White
IP Rating	IP54,IP55
Lighting Type	Fluorescent,LED
Power	150w

Adaptable Lighting for Every Stage

This Fresnel stage light is designed to deliver optimal illumination in diverse professional settings such as auditoriums, events, and studios. The adjustable beam angle from 15 to 55 degrees allows users to shape light precisely, while selectable color temperatures cater to multiple creative requirements. Rugged construction and a matte black finish blend seamlessly into performance environments, guaranteeing both durability and visual discretion.

Efficient and Silent Performance

Operating with an advanced silent fan cooling system, this Fresnel prevents overheating and eliminates distracting noise on set or during live performances. The COB LED light source ensures consistently high output and a lifespan of up to 50,000 hours, reducing the frequency of replacement and maintenance.

FAQ's of Led Fresnel Stage Light:

Q: How do I adjust the beam angle on the LED Fresnel Stage Light?

A: You can easily adjust the beam angle from 15 to 55 by manually rotating the focus knob on the light, allowing you to switch between a narrow and wide light spread as required for your stage setup.

Q: What control modes are available, and how do they benefit professional users?

A: This fixture supports both DMX 512 and manual control modes. DMX 512 offers seamless integration into professional lighting systems, while manual controls suit standalone applications, providing flexibility for users in studios, theaters, or on location.

Q: When is it best to use the 3200K or 5600K color temperature options?

A: Select 3200K for warm, tungsten-like light ideal for traditional theater or indoor environments. Use 5600K for daylight-matching scenarios, such as film shoots or locations blending with exterior daylight sources.

Q: Where can the LED Fresnel Stage Light be utilized effectively?

A: This light is suitable for theaters, stages, studios, auditoriums, events, and other venues requiring professional lighting. Its robust design and high CRI make it especially effective for situations demanding accurate color reproduction.

Q: What accessories are included, and what is their role in the lighting process?

A: The package includes a barndoor for precise beam control, a power cable for easy setup, and a safety rope for secure mounting. These accessories streamline installation and ensure operational safety during use.

Q: How does the silent cooling system benefit stage and studio applications?

A: The built-in silent fan guarantees efficient thermal management without generating noise. This ensures that performances and recordings remain undisturbed, making it ideal for environments where sound is critical.

Q: What are the main advantages of using a COB LED Fresnel with high CRI?

A: COB LEDs deliver uniform and powerful illumination, while a high CRI (>90) ensures faithful color rendering, essential for high-quality visual presentations and professional photography or video work.
